Kabel NF2XSY 12/20 (24)kV SPLN 43

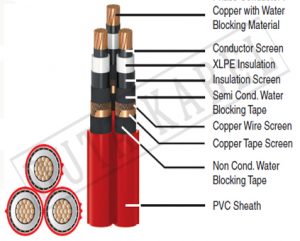

Cu / XLPE / CWS / PVC
(Aluminium Conductor, XLPE Insulated, Copper Wire Screened, PVC Sheathed)
Standard Specification : SPLN 43-5-1 : 1995
Size :
NF2XSY 3 x 35/16 mm2
NF2XSY 3 x 50/16 mm2
NF2XSY 3 x 70/16 mm2
NF2XSY 3 x 95/16 mm2
NF2XSY 3 x 120/16 mm2
NF2XSY 3 x 150/25 mm2
NF2XSY 3 x 185/25 mm2
NF2XSY 3 x 240/25 mm2
NF2XSY 3 x 300/25 mm2
Appication :
For installation outdoors, on ground if no mechanical damage is likely to occur
Special Features on Request :
– Flame Retardant Cat A, B, C
– UV Resistance
– Anti Termite
– Anti Rodent
– Low Smoke Zero Halogen
Tinned Coated Copper Conductor
Electrical properties for tinned coated copper conductor will be submitted
upon request
Conductor Shape
35 – 300 sqmm supplied in compacted circular stranded conductor shape.
Standard Packing
35 – 300 sqmm will be supplied in wooden drum on available length
Length Tolerance per drum ± 2%
