Size :

N2XSY 1 x (1.5-800) mm² 0.6/1 kV

N2XSY 2 x (1.5-300) mm² 0.6/1 kV

N2XSY 3 x (1.5-300) mm² 0.6/1 kV

N2XSY 4 x (1.5-300) mm² 0.6/1 kV

N2XSY 5 x (1.5-50) mm² 0.6/1 kV

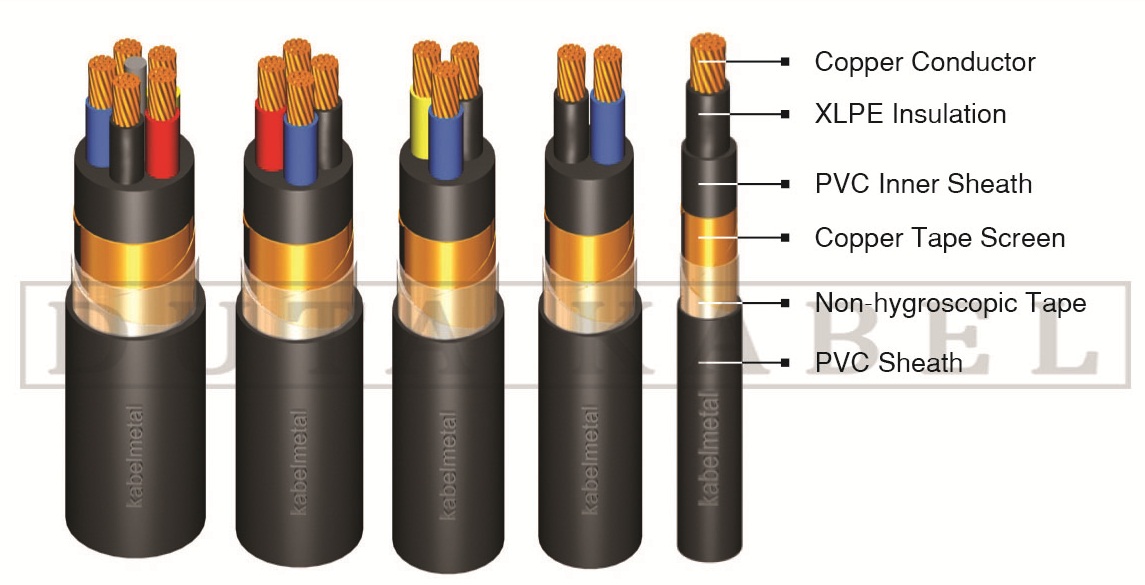

N2XSY Multi Core

Appication :

For power plants and switchgear as well as for installation of sub-station; for installation indoors in confinned spaces and cable channels
because of small bending radius. As burried cable, because of its light weight prefered in where installation is difficult.

Special Features on Request :
• Fire Resistance
• Oil Resistance
• UV Resistance
• Flame Retardant Cat. A, B, C
• Flame Retardant Non Category
• Heat Resistance
• Anti Termite
• Anti Rodent
• Low Smoke Zero Halogen
• Nylon Coated

Conductor Shape
1.5 – 10 sqmm supplied in solid (re) or non compacted circular stranded (rm) conductor shape
16 sqmm supplied in non compacted circular stranded (rm) conductor shape
25 – 35 sqmm supplied in compacted circular stranded (cm) conductor shape
50 – 400 sqmm supplied in sector shaped stranded (sm) conductor.
